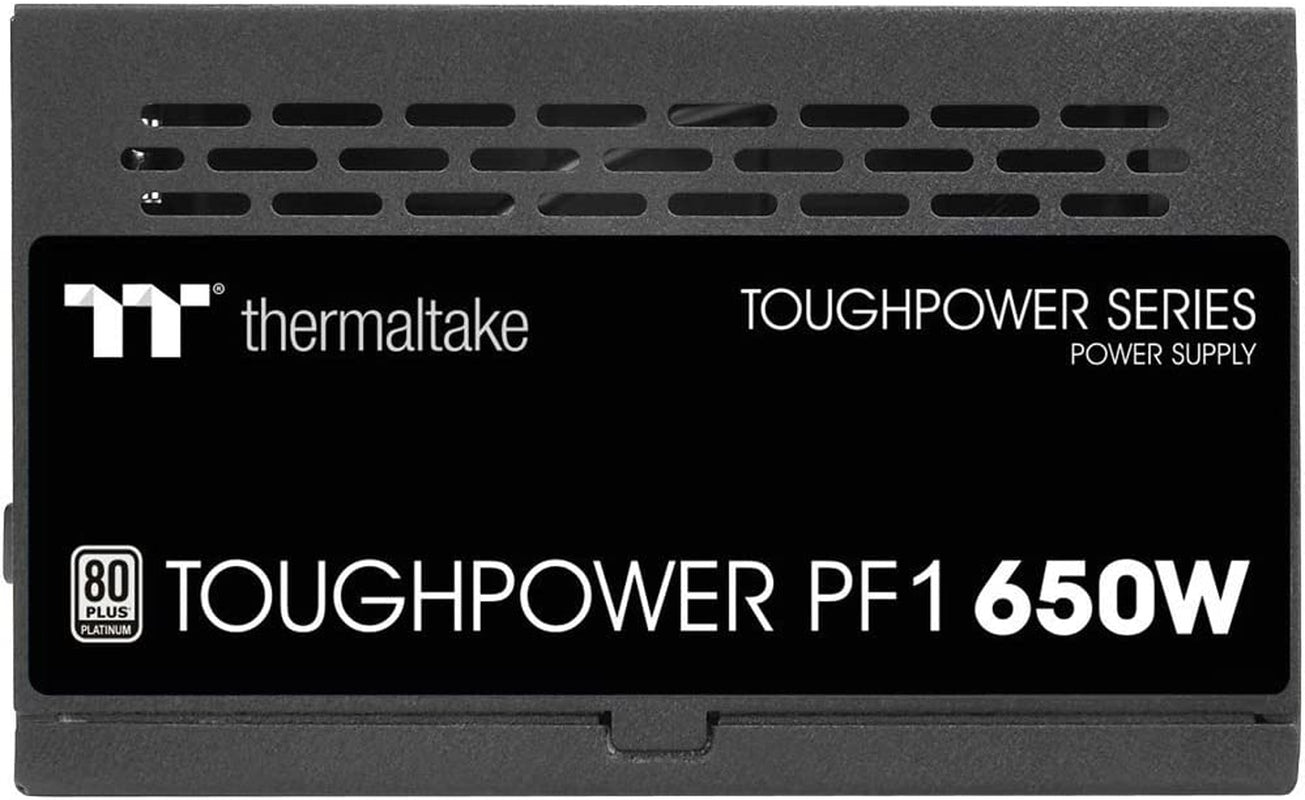

Thermaltake Toughpower PF1 650W 80+ Platinum Full Modular Power Supply with Ultra Quiet 120mm Hydraulic Bearing Fan and Compact Design

Thermaltake Toughpower PF1 650W 80+ Platinum Full Modular Power Supply with Ultra Quiet 120mm Hydraulic Bearing Fan and Compact Design

$195.13
  • [80+ PLATINUM and Intel C6/C7 STATES READY] - Deliver up to 90% efficiency, PF1 Series optimized to work with all generations of Intel's processors to achieve maximum energy saving
  • [ULTRA QUIET 120mm HYDRAULIC BEARING FAN] - Self-lubricated hydraulic Bearing PWM fan superior cooling performance and near silent operation
  • [SMART ZERO FAN] - Auto-regulated fan speed based on power consumption for a quiet and efficient operation. Fan works only when PSU work load goes over 30%. A switch At the back of the PSU can be turned off to have the fan spun constantly

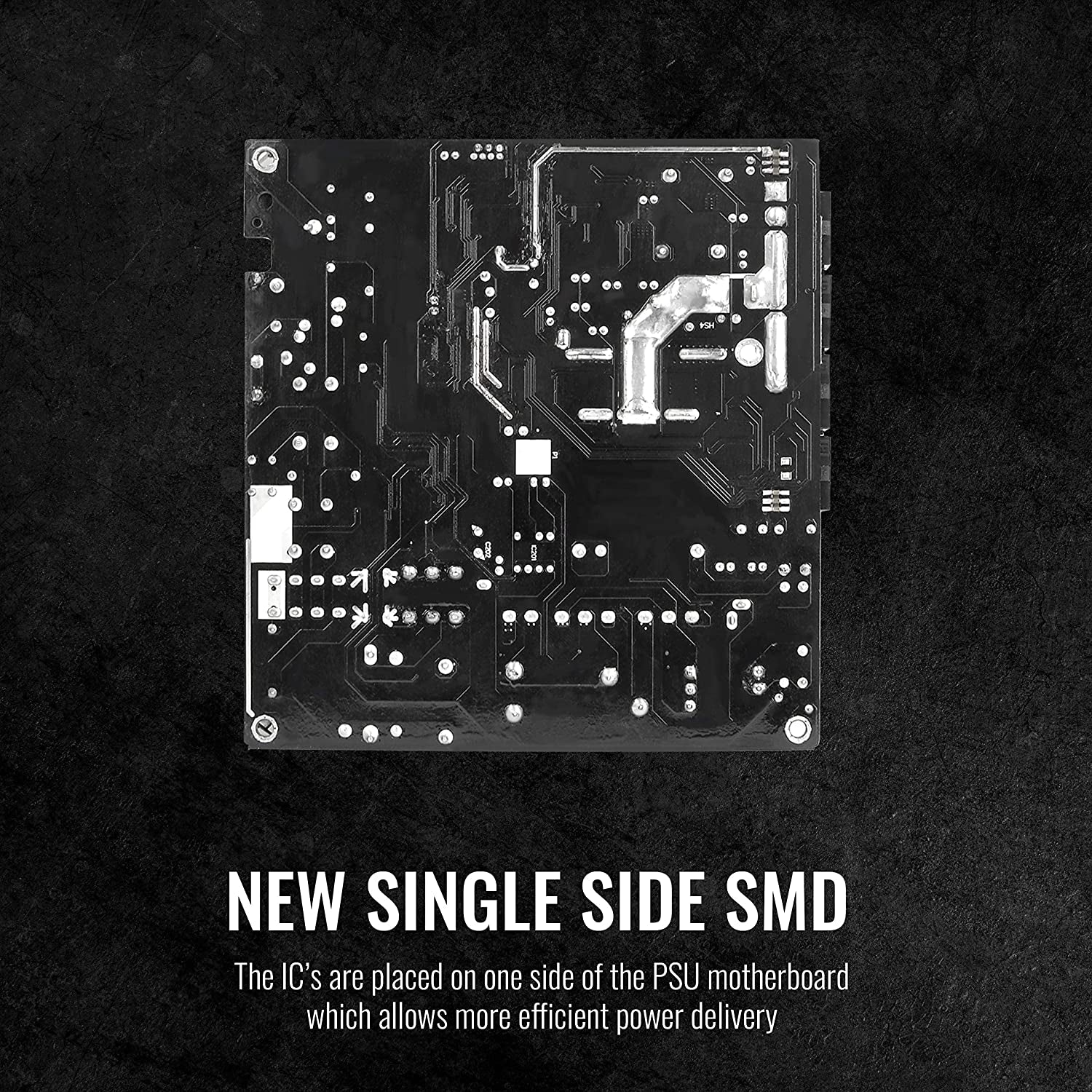

  • [SINGLE SIDE SMD] - The new design of the PCB allows all SMDs to sit on the top side of the PSUs PCB preventing heat accumulation at bottom and allows cold air pass through the fan, keeping temperature low

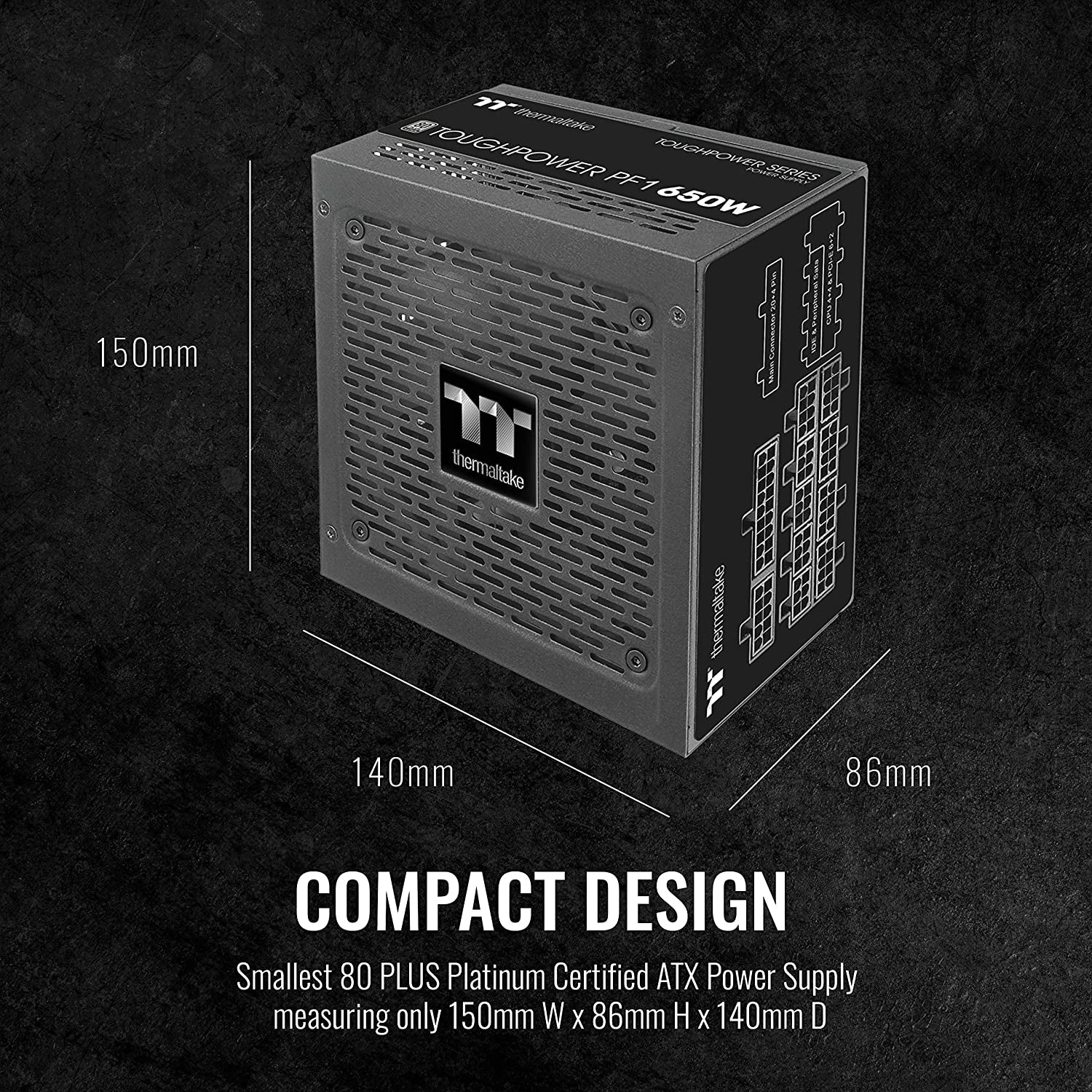

  • [COMPACT DESIGN] - Offering better chassis compatibility and room for cable management

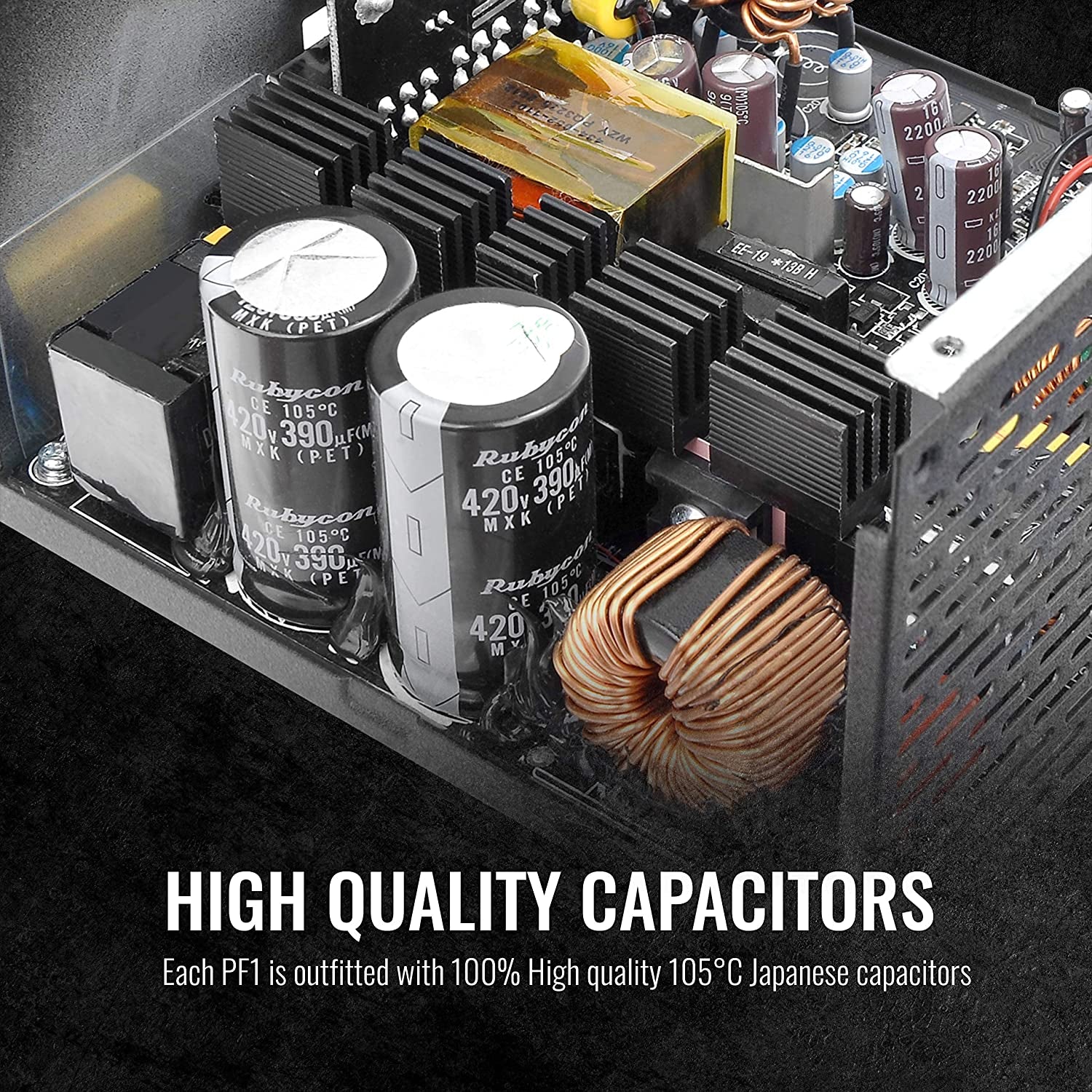

  • [JAPANESE CAPACITORS] - 100% High quality 105°C (221°F) Japanese capacitors offer the highest stability, durability, and reliability
  • [<30 mV LOW RIPPLE NOISE] - Low ripple ensures excellent performance and keeps performance-critical components, such as high-end graphic card, operating reliably longer
  • [STRICT VOLTAGE REGULATION] - <2% Voltage regulation for major rails to meet the highest performance, compared to Intel's standard 5%
  • [HIGH AMPERAGE SINGLE +12V RAIL] - Ensures a stable and reliable supply to other PC components

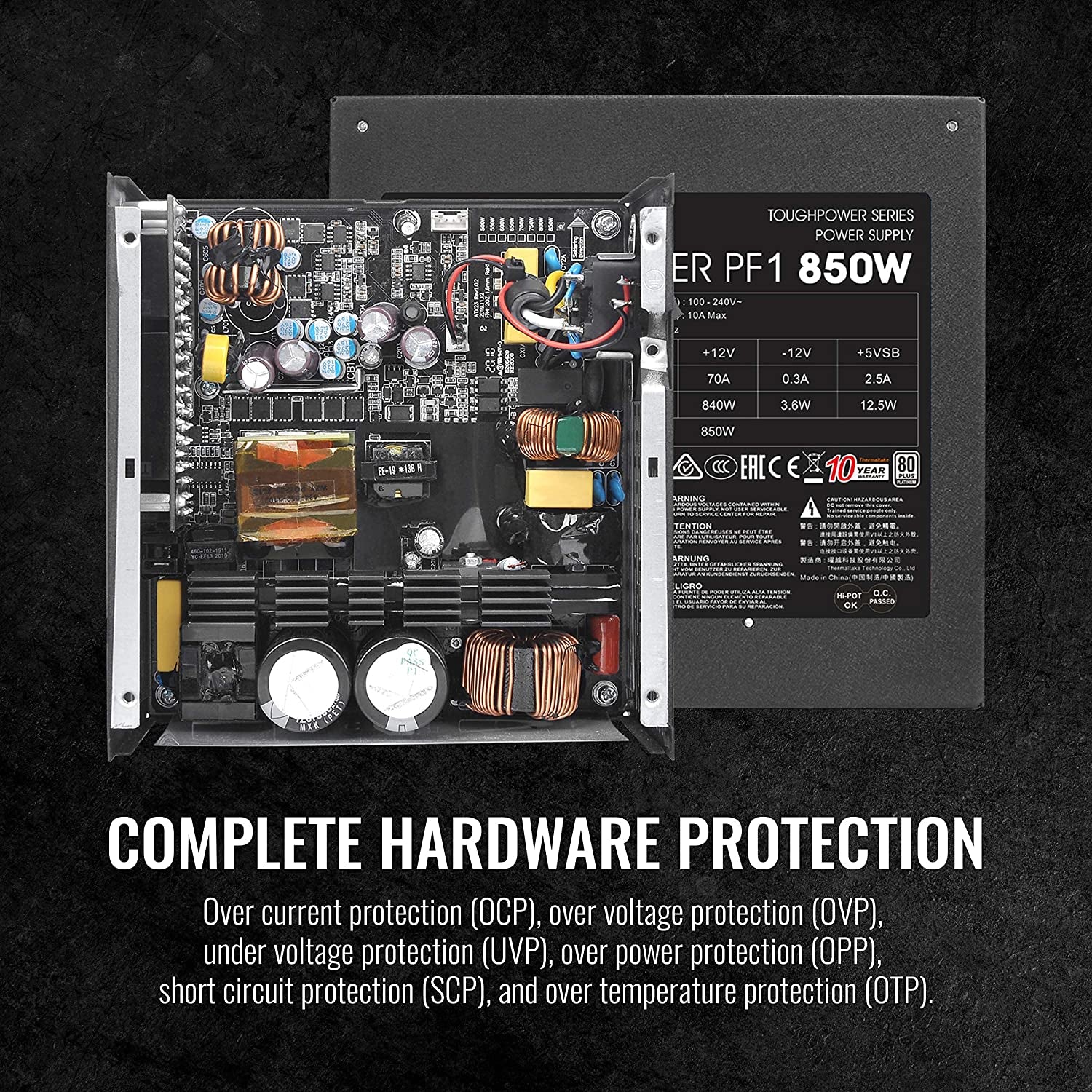

  • [Industrial protections] - (UVP) Under Voltage protection, (OVP) Over Voltage protection, (SCP) short circuit protection, (OPP) over Power Protection, (OTP) over temperature protection, and (OCP) Over current protection

The Toughpower PF1 Platinum Series comes in 850W/750W/650W and delivers 80 PLUS Platinum efficiency. Besides the fundamental features listed below, The PF1 Platinum Series has two other critical characteristics – compact size and our new board technology. With the small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 prides its ample space for cable management. The new board technology offers single sided SMD which all IC chips are set to only one side, allowing the heat to only be accumulated on one side so the entire board can be covered and cooled down by the 120mm ultra quiet Hydraulic Bearing Fan.P/N: PS-TPD-0650FNFAPU-1WATTS: 650WMODEL: TTP-650AH2FKPMAX. OUTPUT CAPACITY: 650WPEAK OUTPUT CAPACITY: 780WCOLOR: BlackDIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 140mm(D)PFC (POWER FACTOR CORRECTION): Active PFCPOWER GOOD SIGNAL: 100-500 msecHOLD UP TIME: 16msec at 100% of full loadINPUT CURRENT: 10AINPUT FREQUENCY RANGE: 50Hz - 60HzINPUT VOLTAGE: 100V – 240VOPERATING TEMPERATURE: 5°C to + 50°COPERATING HUMIDITY: 20% to 85%,non-condensingSTORAGE TEMPERATURE: -40°C to + 55°CSTORAGE HUMIDITY:10% to 95%, non-condensingCOOLING SYSTEM: 12cm hydraulic bearing fanEFFICIENCY: Meet 80PLUS Platinum at 115Vac input.MTBF: 120,000 hrs minimumSAFETY APPROVAL: OVP/OCP/CE/UL/TÜV/FCC/BSMI/CCC/ EACPCI-E 6+2PIN: 4
