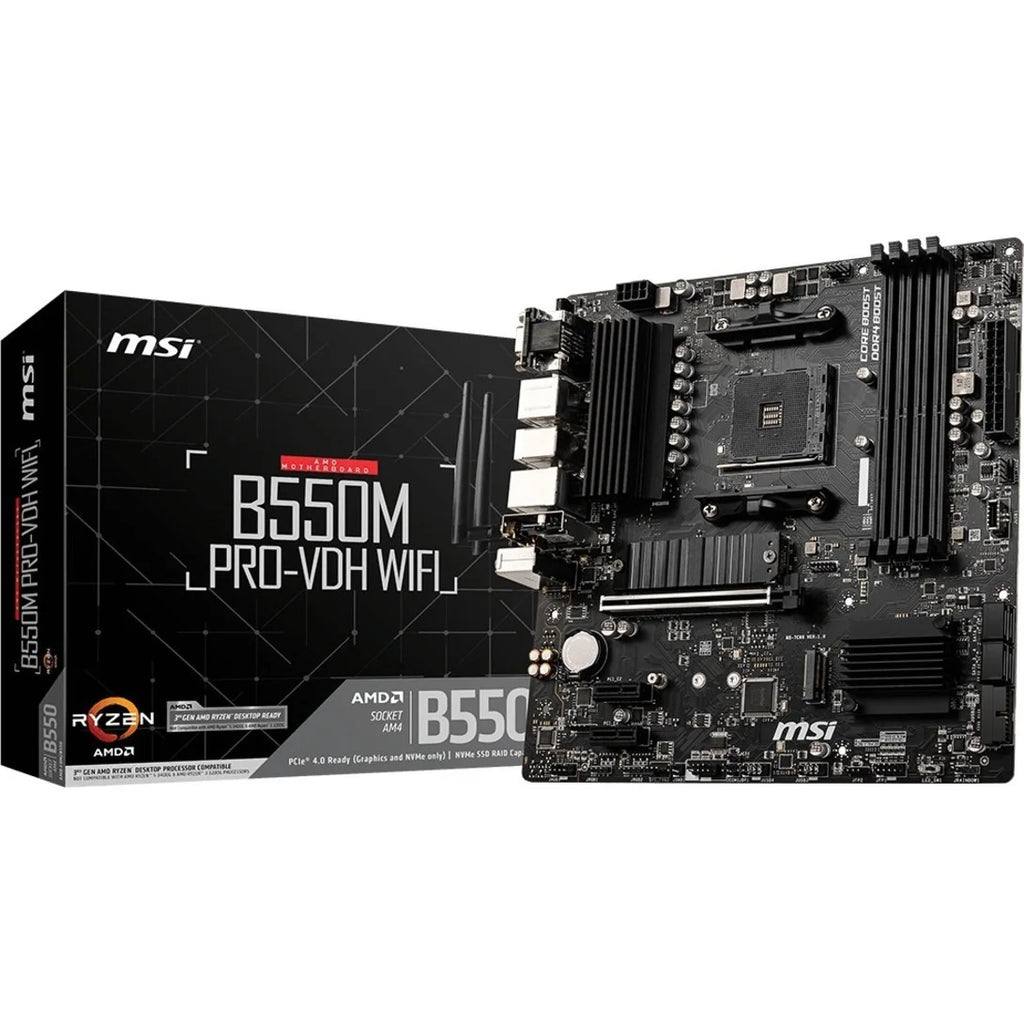

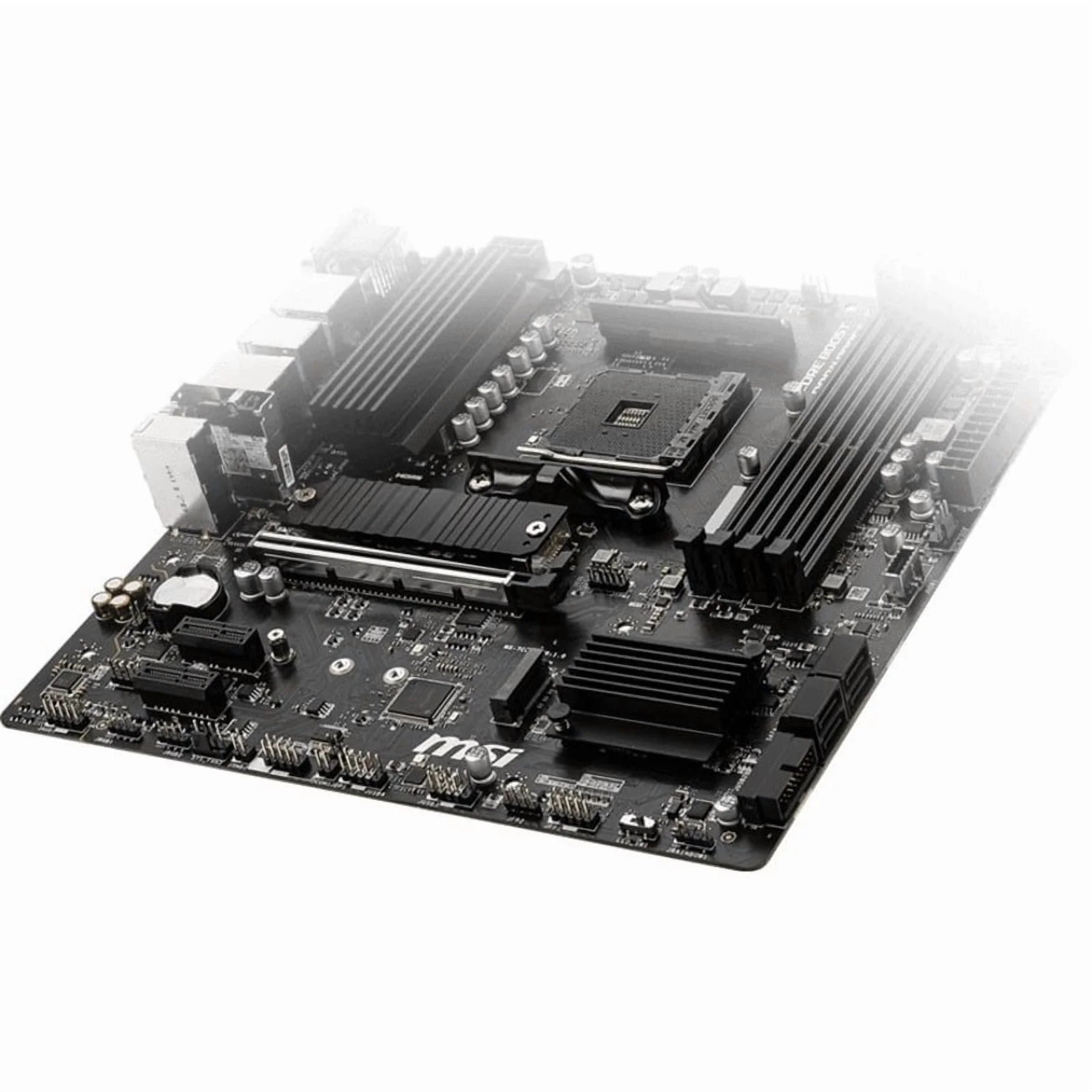

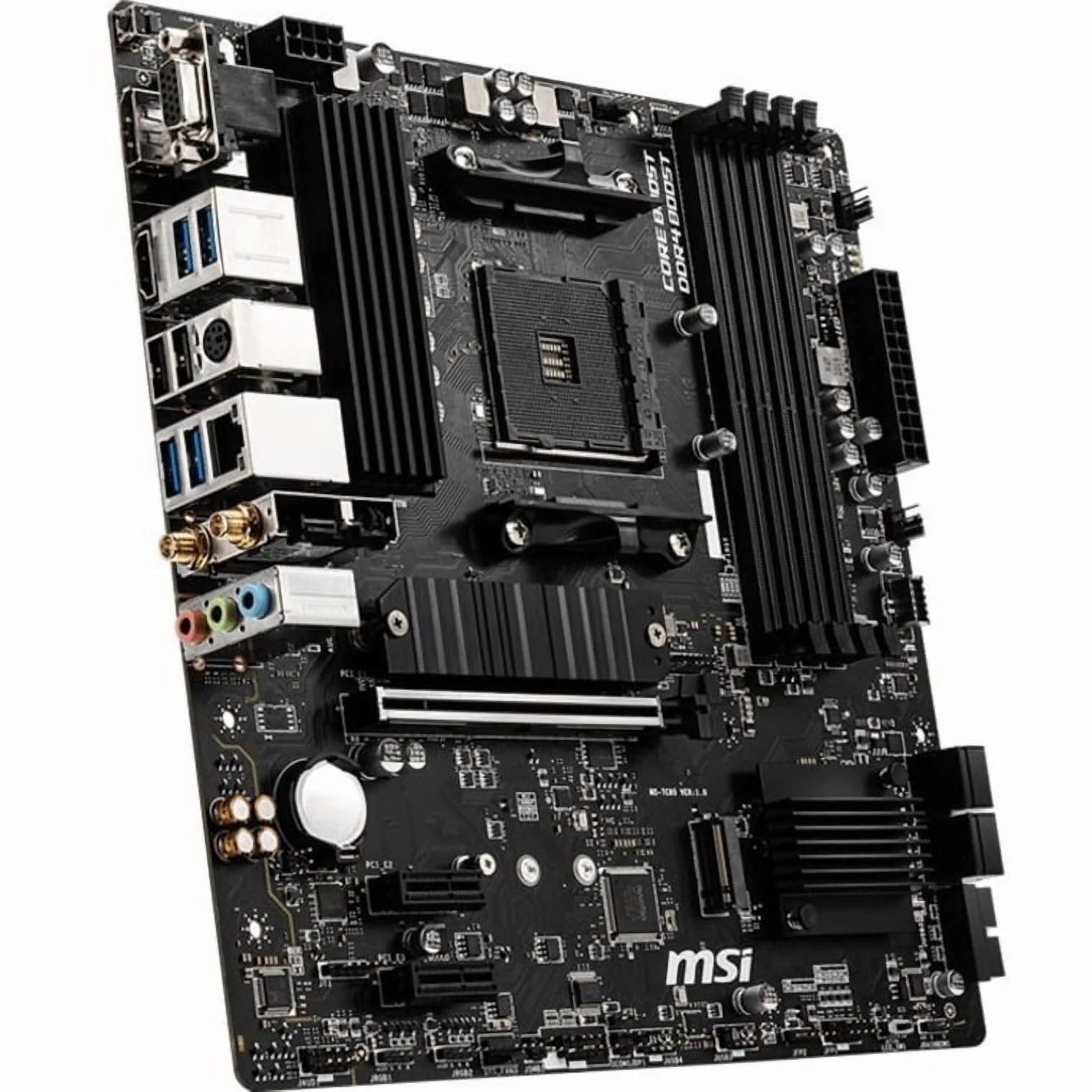

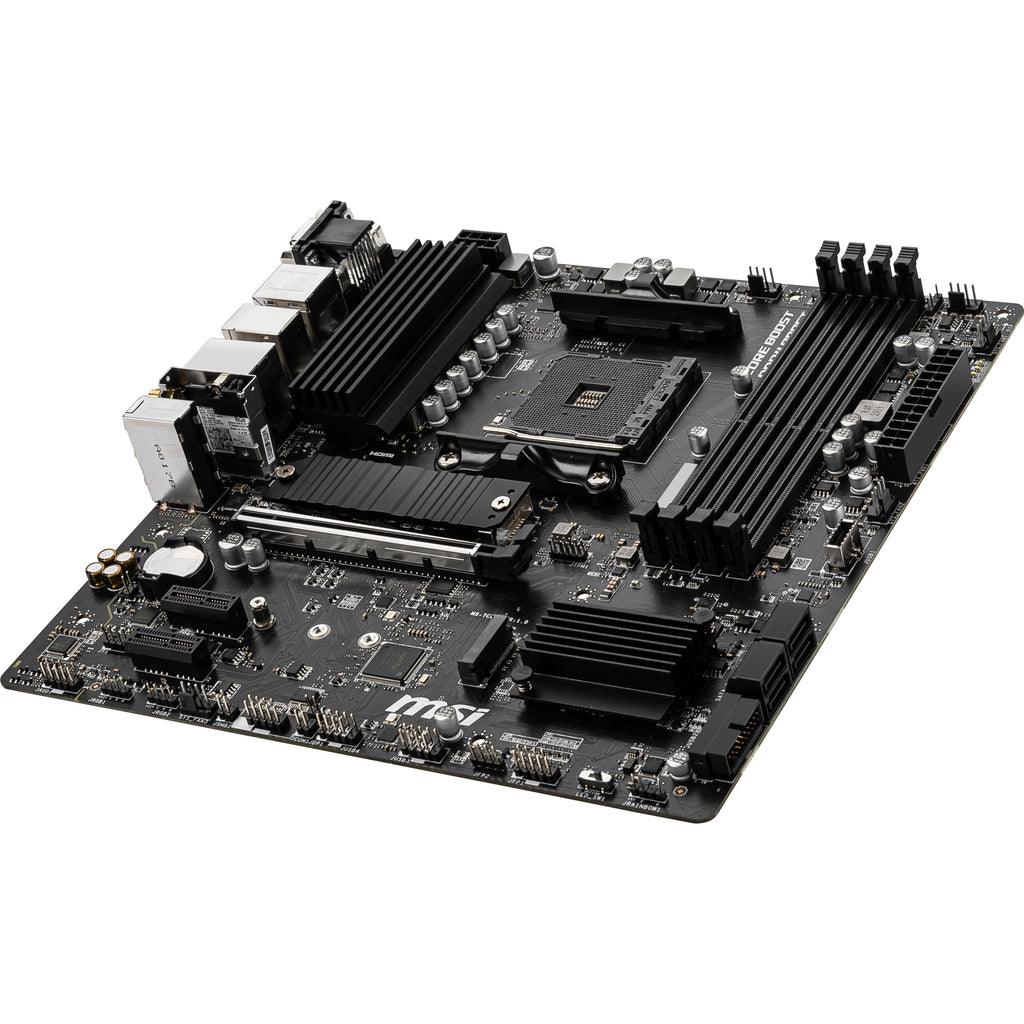

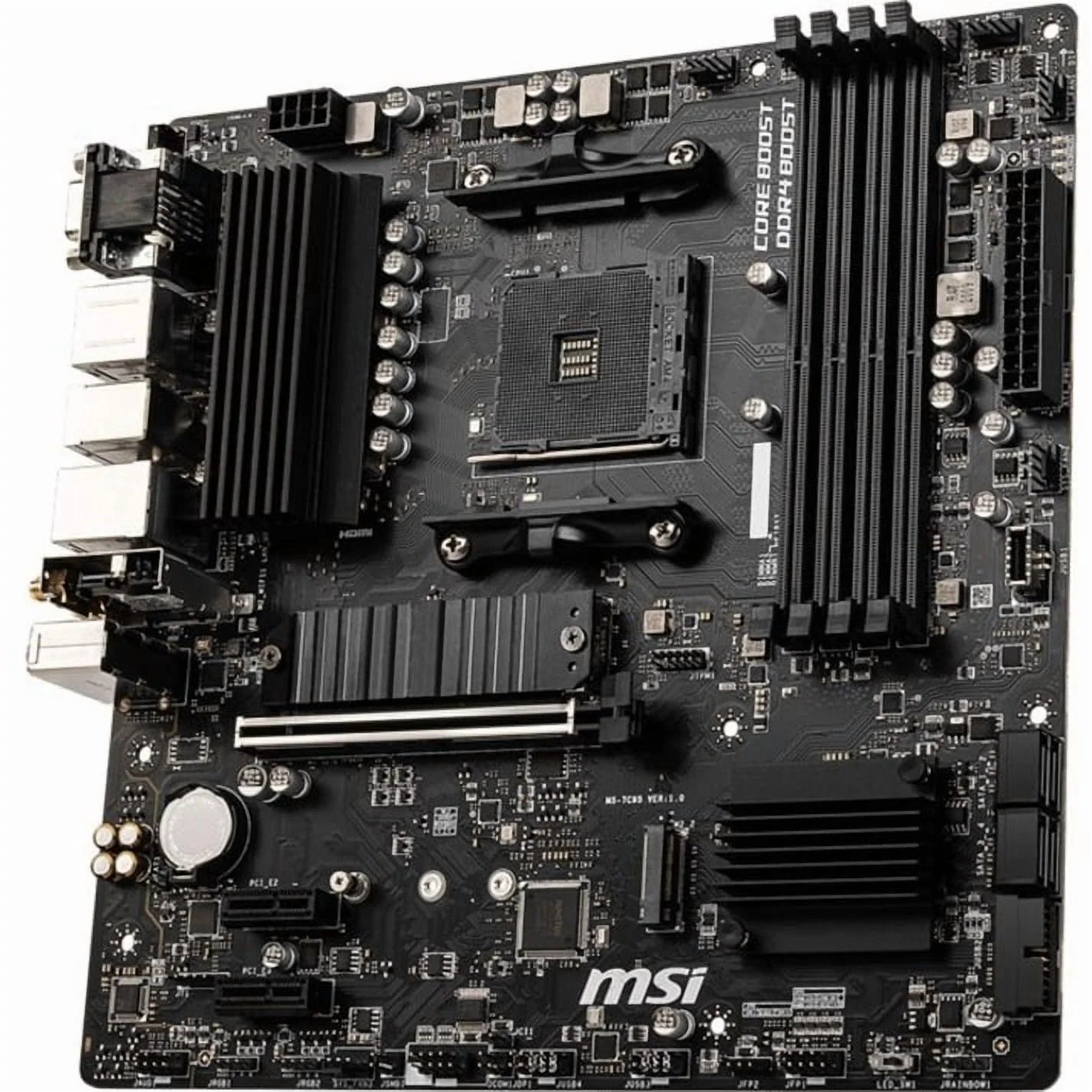

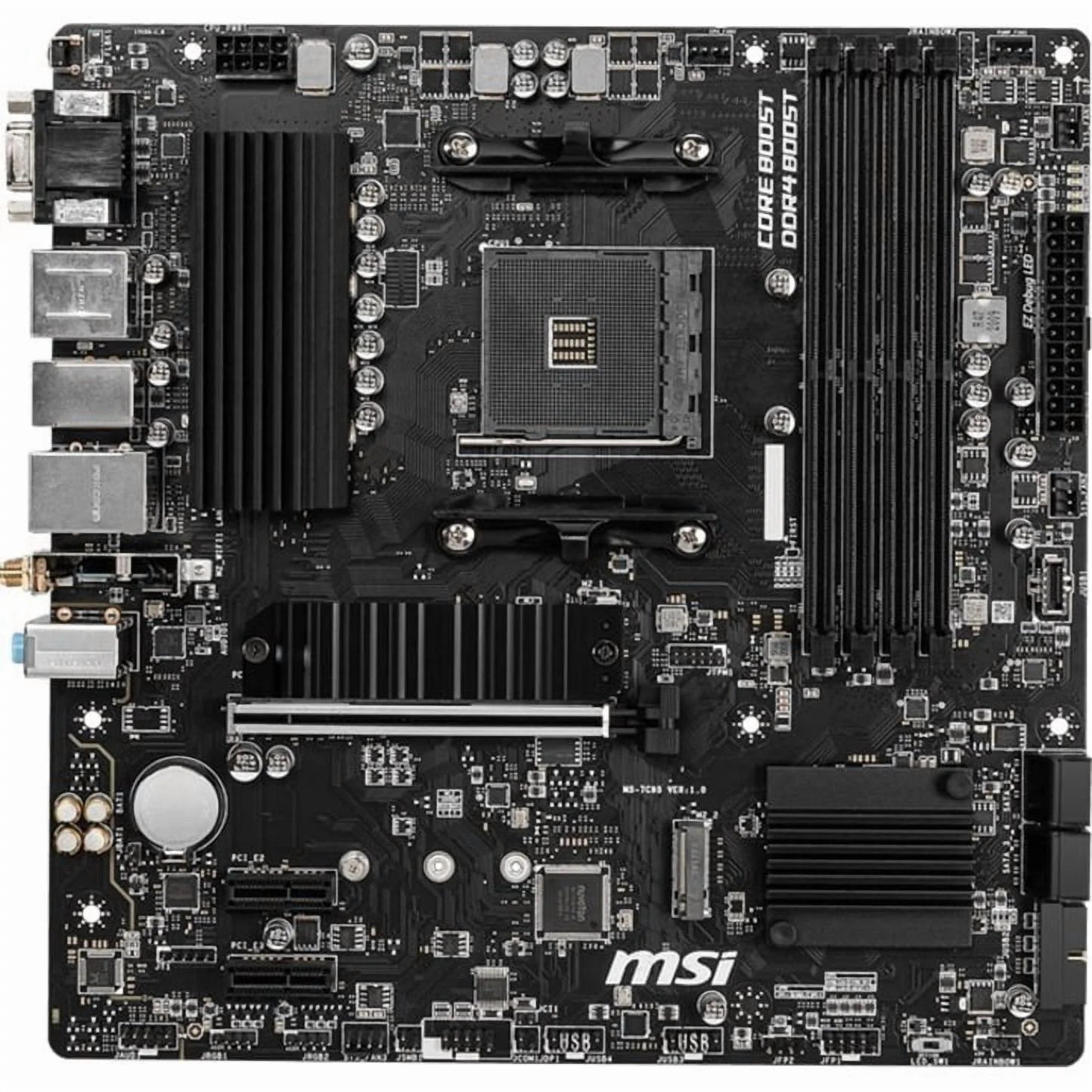

PRO B550M PRO-VDH WIFI AM4 AMD B550 USB 3.0 Micro ATX AMD Motherboard
$136.38
General Information
| MSI B550M PRO-VDH Wifi helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. |
?
Processor & Chipset
| Chipset Manufacturer: | AMD |
| Total Processor Supported: | 1 |

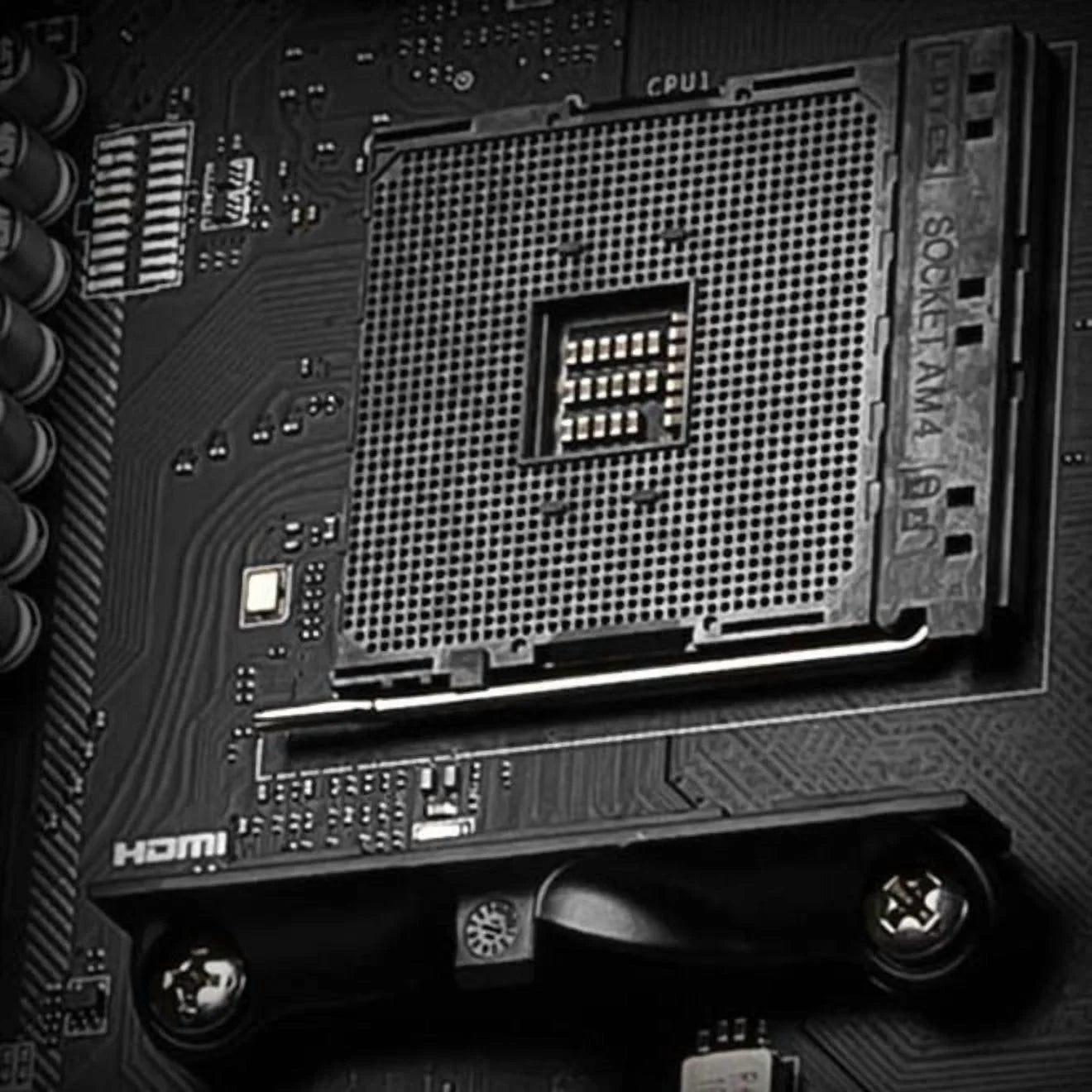

| Processor Socket: | Socket AM4 |
| Processor Supported: | Ryzen 3 |
| Processor Supported: | Ryzen 5 |
| Processor Supported: | Ryzen 7 |
| Processor Supported: | Ryzen 9 |
| Processor Supported: | Ryzen 7 PRO |
| Processor Supported: | Ryzen 5 Pro |
?
Memory
| Number of Memory Slots: | 4 |
| Memory Form Factor: | DIMM |
| Memory Form Factor: | UDIMM |
| Maximum Memory Supported: | 128 GB |
| Memory Technology: | DDR4 SDRAM |
| Memory Speed Supported: | 1866 MHz |
| Memory Speed Supported: | 2133 MHz |
| Memory Speed Supported: | 2400 MHz |
| Memory Speed Supported: | 2667 MHz |
| Memory Speed Supported: | 2800 MHz |
| Memory Speed Supported: | 2933 MHz |
| Memory Speed Supported: | 3000 MHz |
| Memory Speed Supported: | 3066 MHz |
| Memory Speed Supported: | 3200 MHz |
| Memory Speed Supported: | 3466 MHz |
| Memory Speed Supported: | 3600 MHz |
| Memory Speed Supported: | 3733 MHz |
| Memory Speed Supported: | 3866 MHz |
| Memory Speed Supported: | 4000 MHz |
| Memory Speed Supported: | 4133 MHz |
| Memory Speed Supported: | 4266 MHz |
| Memory Speed Supported: | 4400 MHz |
?
I/O Controller
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| RAID Levels: | 0 |
| RAID Levels: | 10 |
| RAID Levels: | 1 |
?
Video
| Onboard Video: | CPU Dependent Video |
?

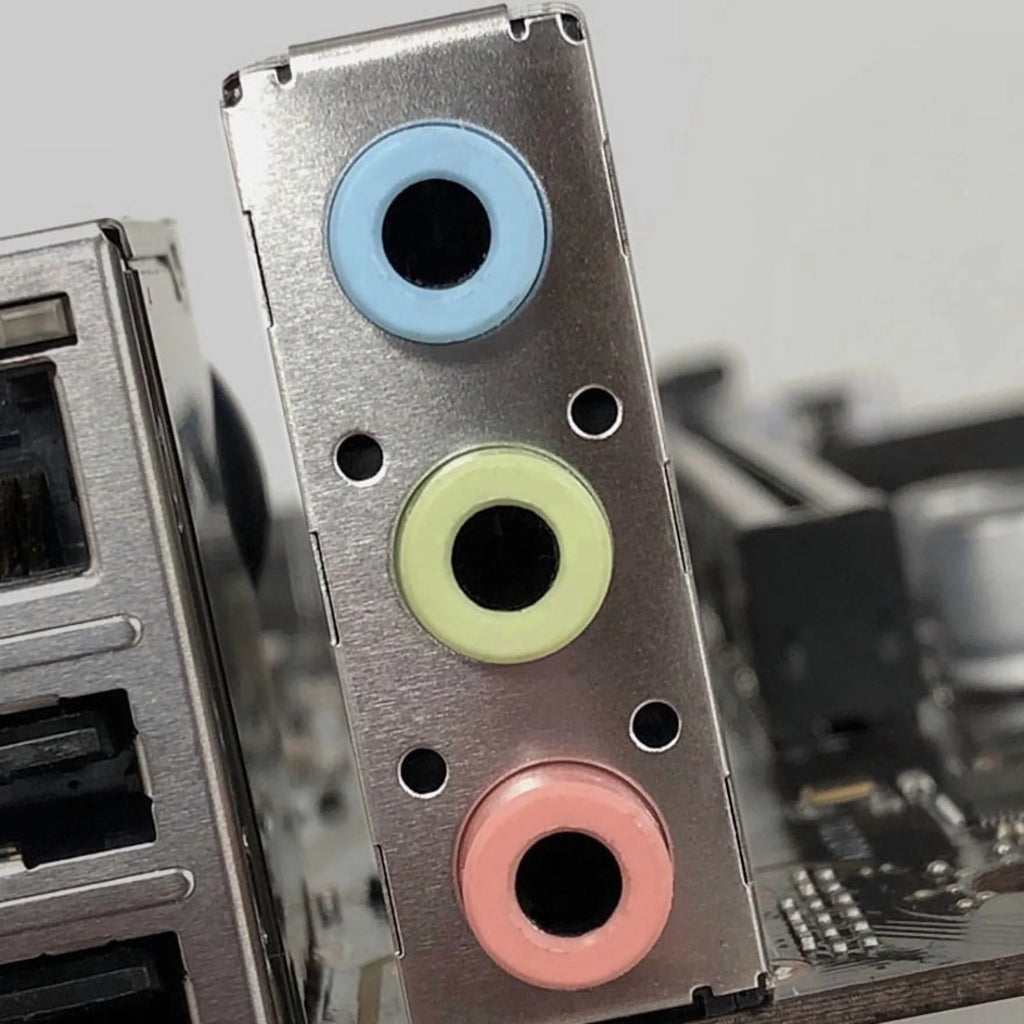

Audio
| Audio Channels: | 7.1 |
?
Network & Communication
| Bluetooth: | Yes |
| Gigabit Ethernet: | Yes |

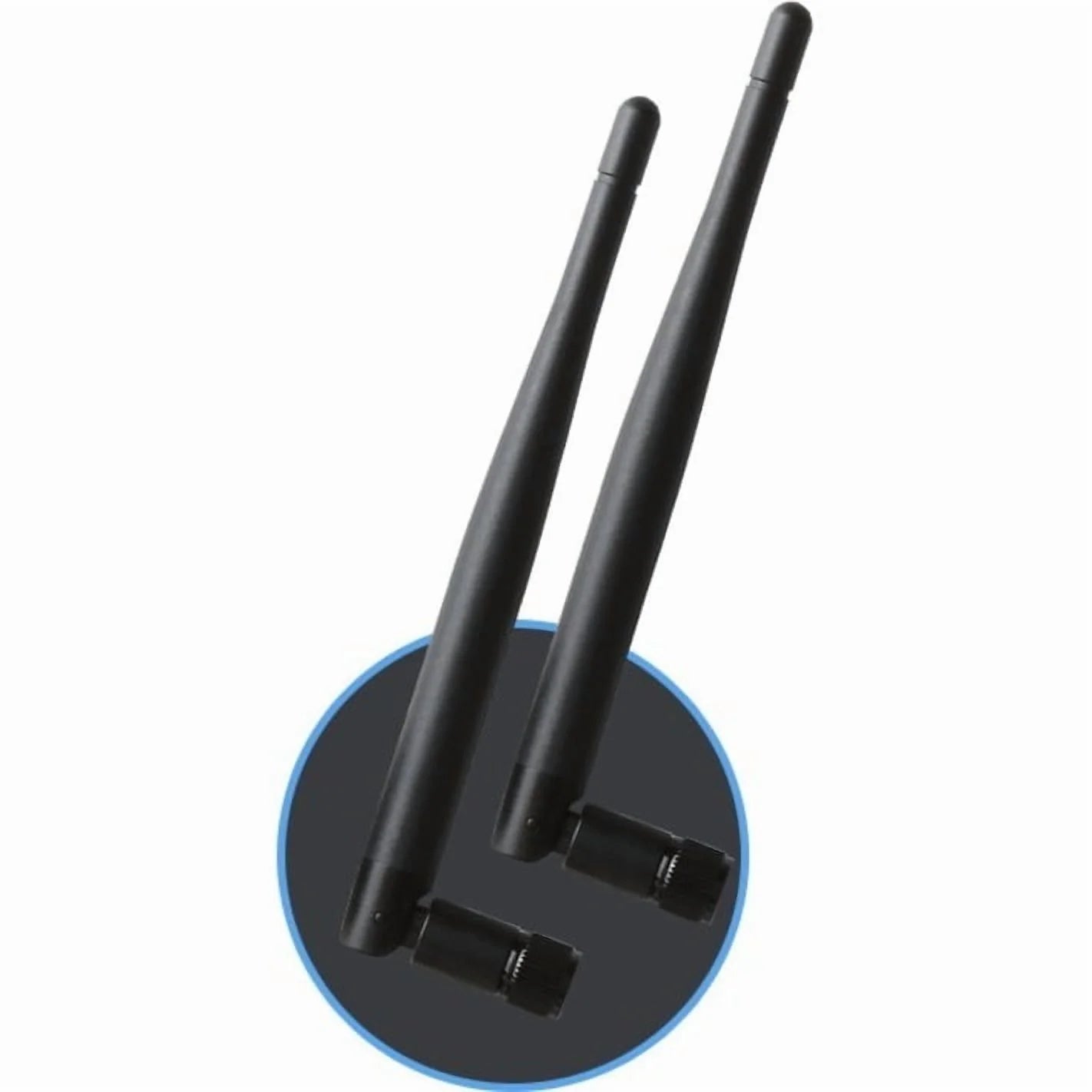

| Wireless LAN: | Yes |
| Wireless LAN Standard: | IEEE 802.11ac |
?
I/O Expansions
| Number of Total Expansion Slots: | 3 |
| Total Number of PCI Express Slots: | 3 |
| Number of PCI Express x1 Slots: | 2 |
| Number of PCI Express x16 Slots: | 1 |
?

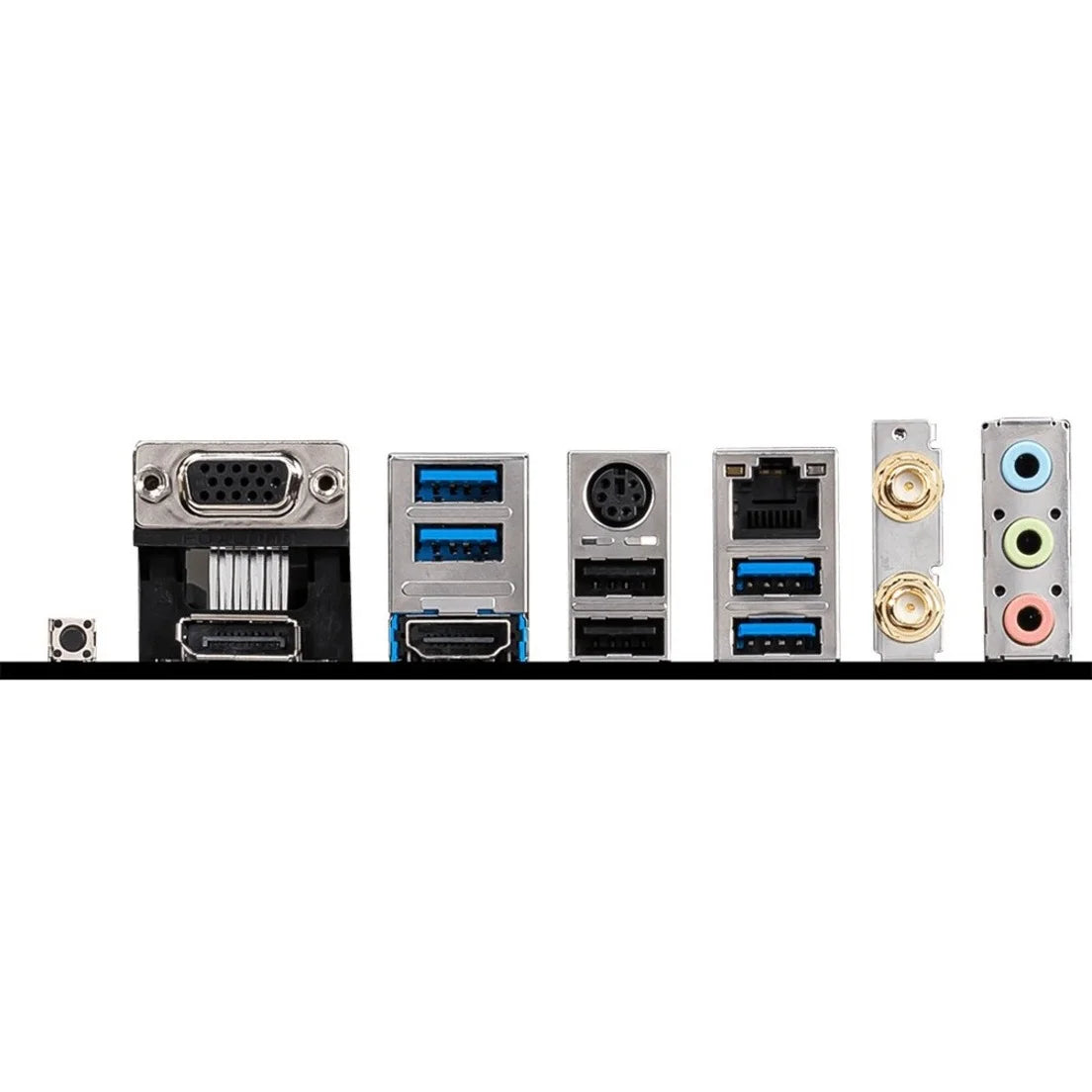

Interfaces/Ports
| Total Number of USB Ports: | 6 |
| Number of USB 2.0 Ports: | 2 |
| Number of USB 3.2 Ports: | 4 |
| VGA: | Yes |
| HDMI: | Yes |
| DisplayPort: | Yes |
| Number of Network (RJ-45) Ports: | 1 |
?
Onboard Interfaces
| Number of SATA Interfaces: | 4 |
| Number of M.2 Interfaces: | 2 |
| Total Number of Onboard USB Ports: | 7 |
| Number of Onboard USB 2.0 Ports: | 4 |
| Number of Onboard USB 3.2 Ports: | 3 |
?
Physical Characteristics
| Form Factor: | Micro ATX |
| Width: | 9.6" |
| Depth: | 9.6" |
?
Miscellaneous
| Brand Compatibility: | AMD |
| Country of Origin: | China |
?
Warranty
| Limited Warranty: | 3 Year |
- Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update.Audio ports (Rear): Realtek ALC892/ALC897 Codec
- Supports dual channel DDR4 memory up to 128 GB (4400 MHz)

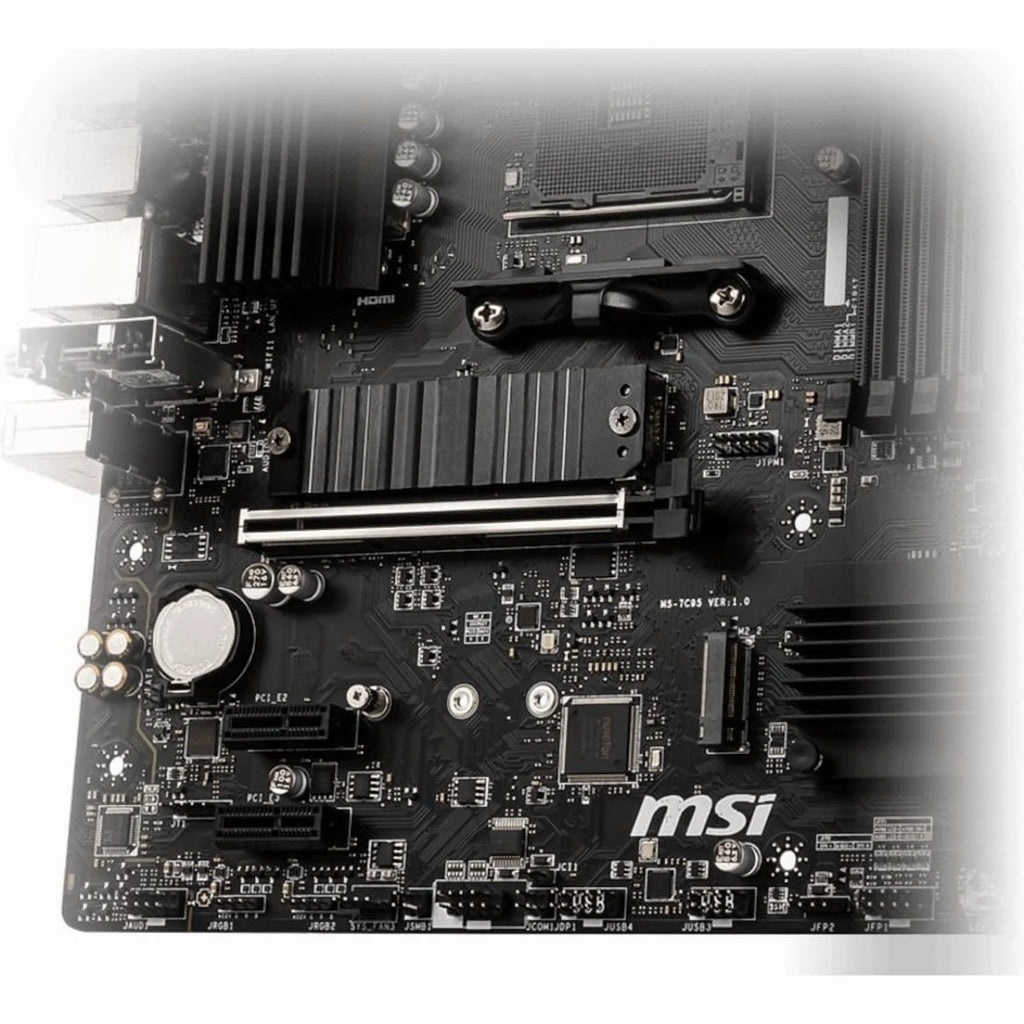

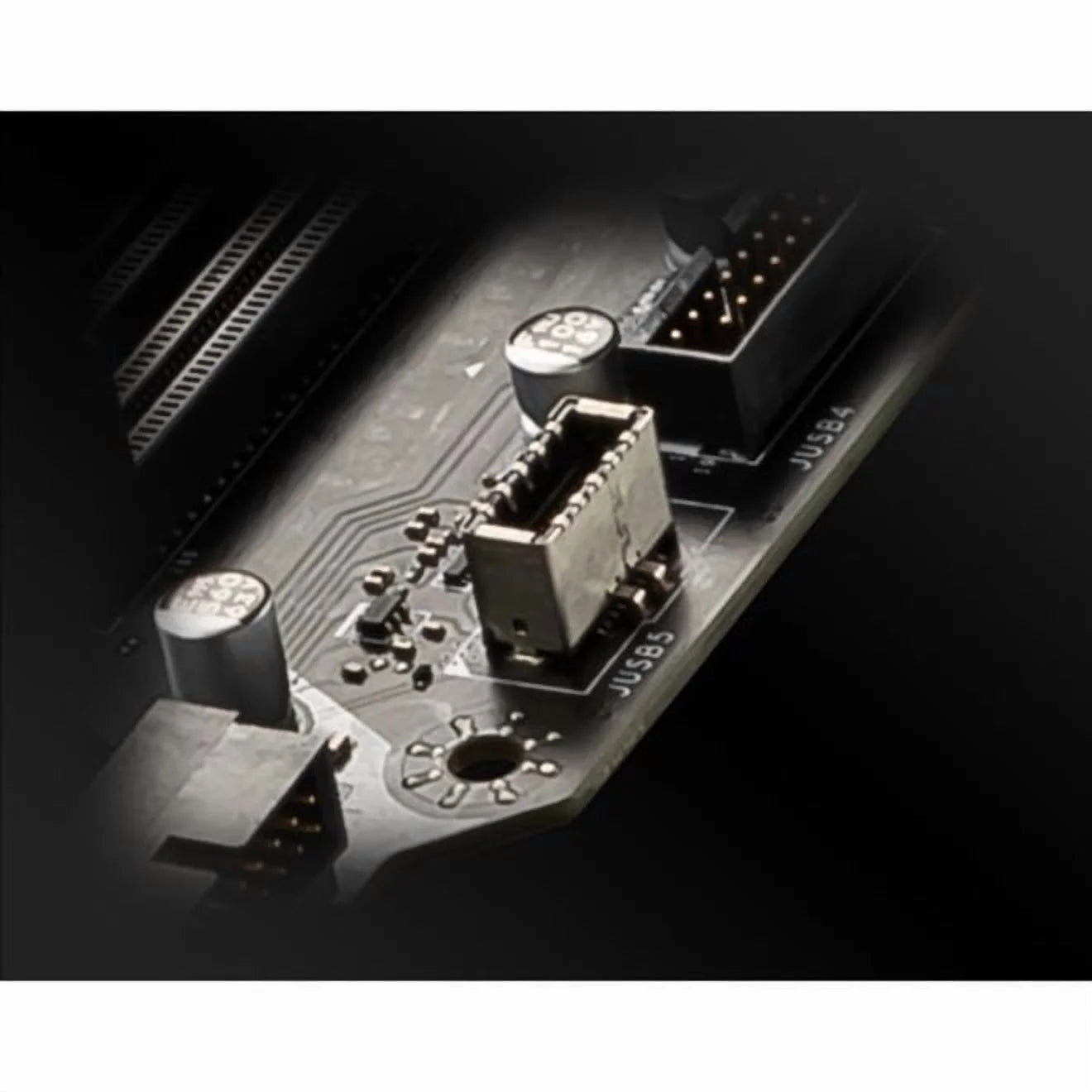

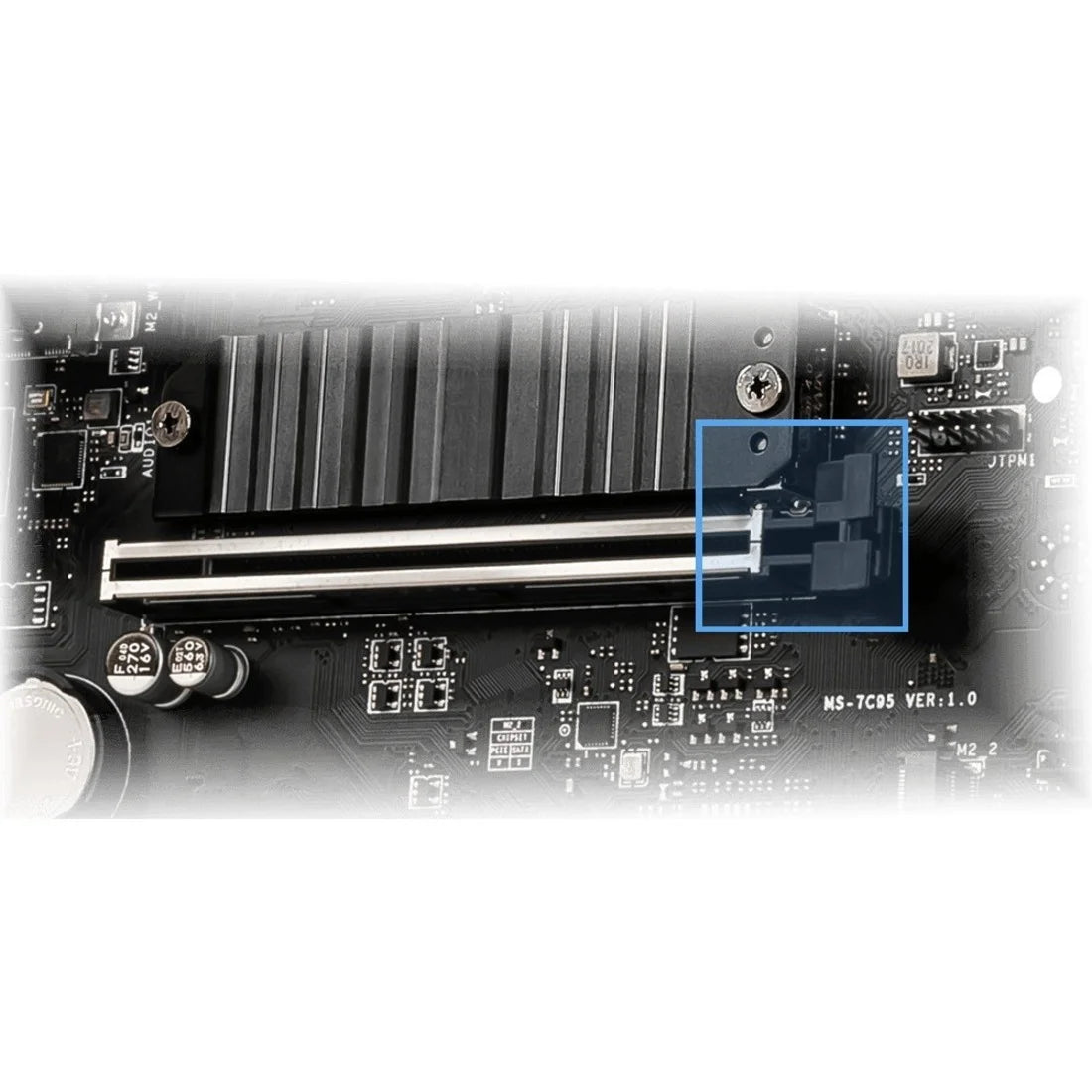

- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Core Boost technology combines optimized power circuit layouts and digital power regulation which allows for precise and steady current delivery to the CPU

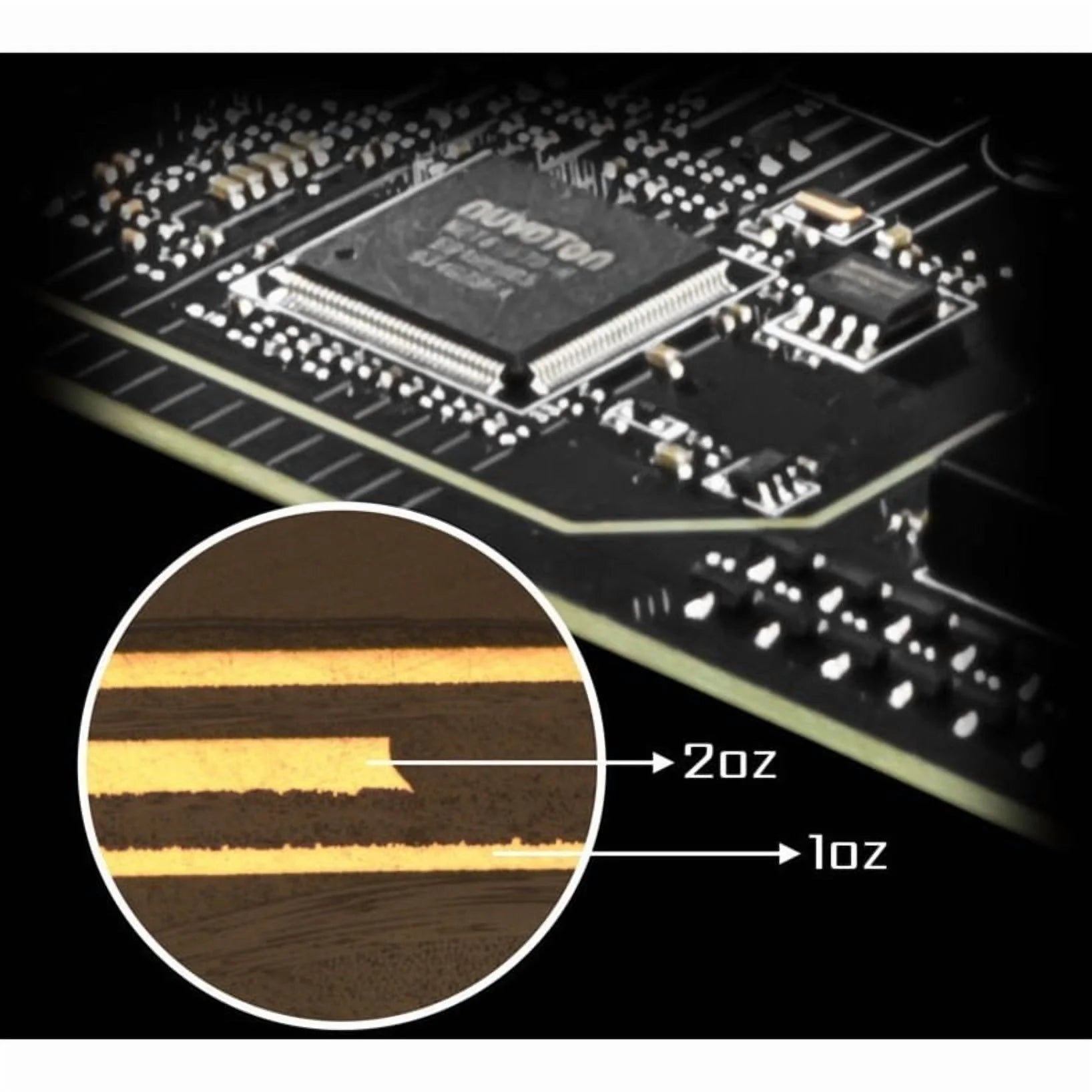

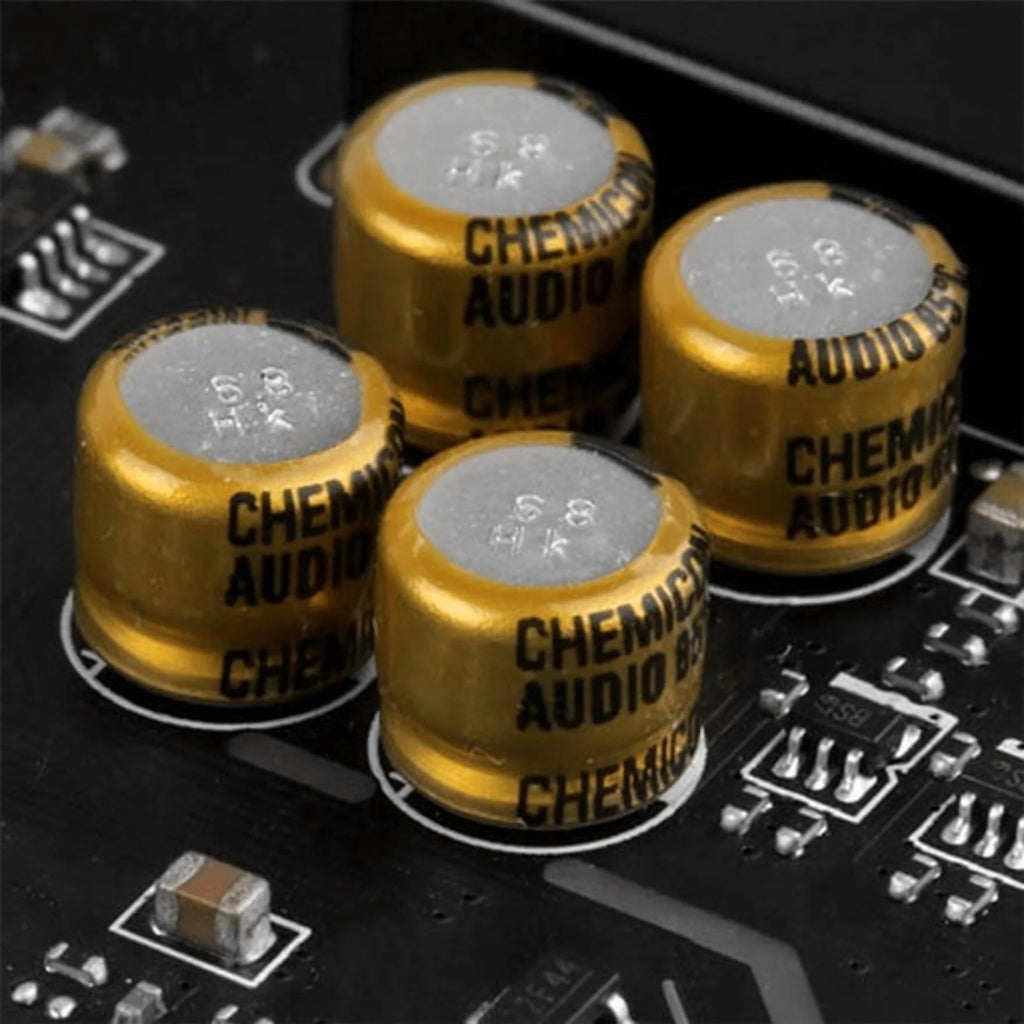

- AUDIO BOOST rewards your ears with studio grade sound quality for immersive gaming experiences.Premium Thermal Solution: Heatsink thermal pad rated for 7W/mk and PCB with 2oz thickened copper.Flash BIOS Button lets users flash the BIOS even without a CPU or memory
