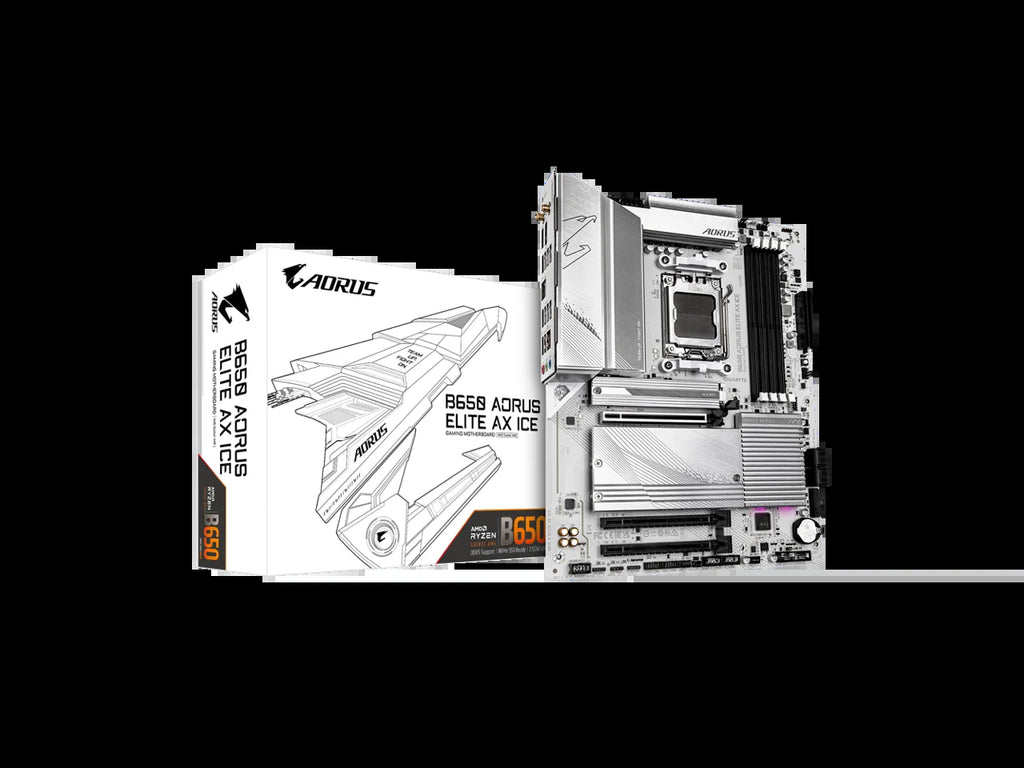

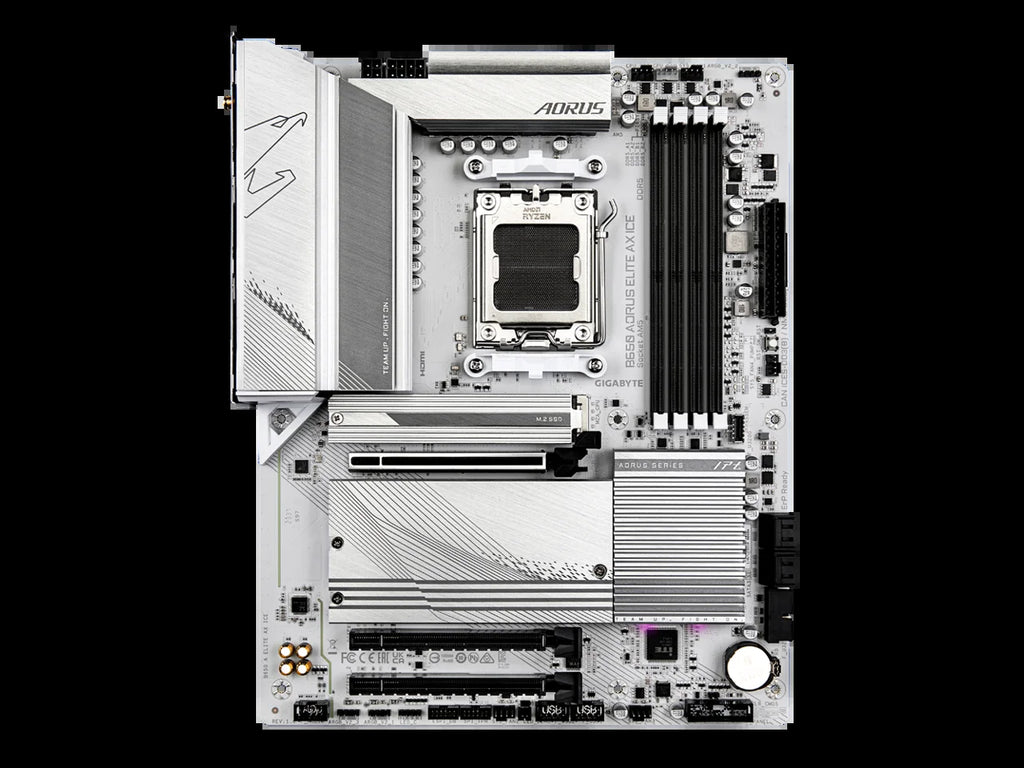

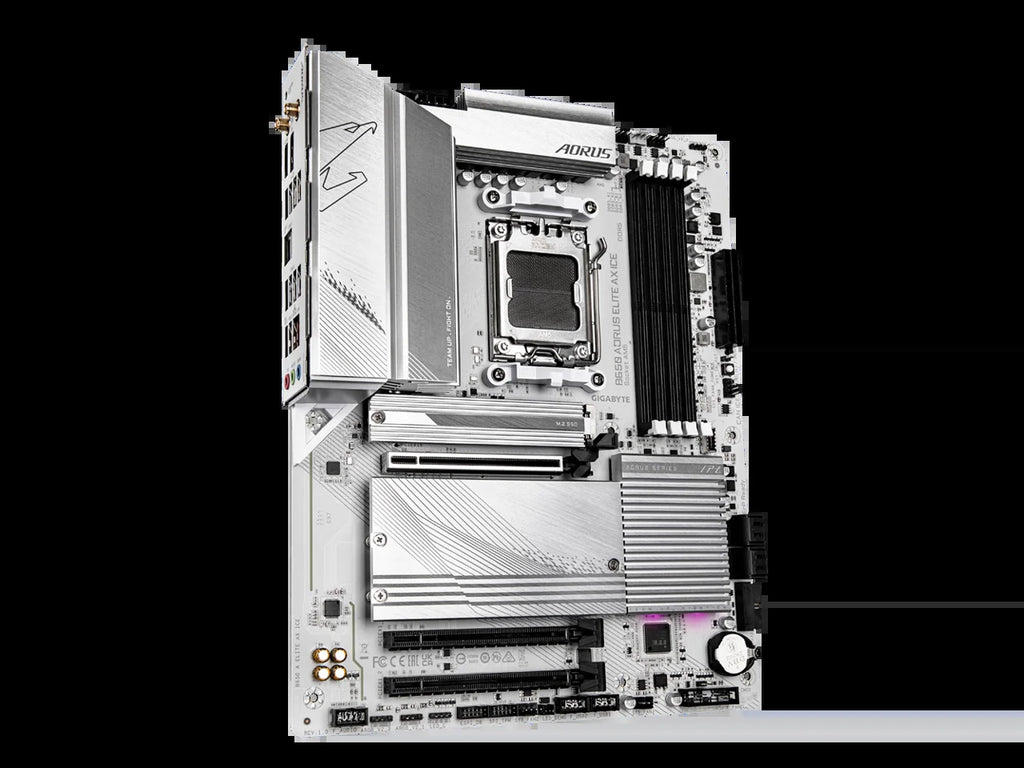

Aorus B650 AORUS ELITE AX ICE Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX (B650Aoruseliteaxice)

Processor & Chipset

Chipset Manufacturer: AMD
Chipset Model: B650
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7, Ryzen 5

Memory

Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 8000 MHz, 7800 MHz, 7600 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6666 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 4400 MHz

I/O Controller

Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10

Video

Onboard Video: CPU Dependent Video
Graphics Controller Model: Radeon Graphics

Audio

Audio Channels: 7.1

Network & Communication

Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Total Number of Expansion Slots: 3
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3

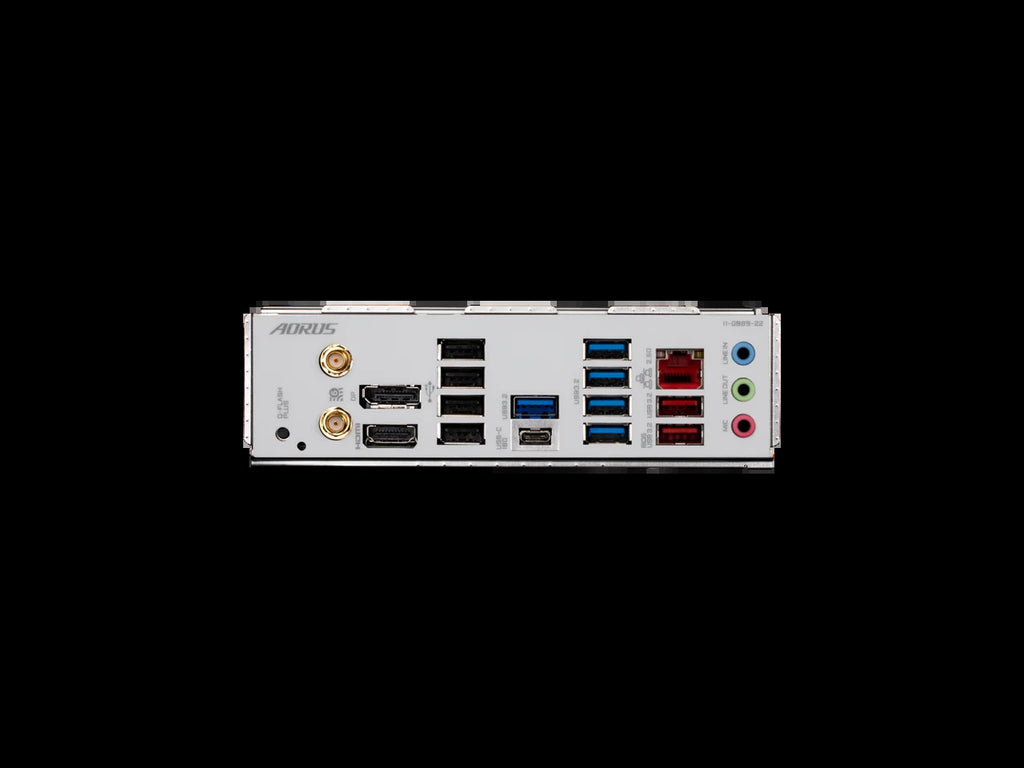

Interfaces/Ports

Total Number of USB Ports: 12
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-C Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1

Onboard Interfaces

Number of SATA Interfaces: 4
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4

Physical Characteristics

Form Factor: ATX
Width: 12"
Depth: 9.6"

Miscellaneous

Environmental Compliance: China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

• AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
• 5-Year Warranty
• Dual Channel DDR5: 4*DIMMs & Intel XMP Memory Module Support
• Commanding Power Design: Twin 12+2+2 Phases, 8-Layer 2X Copper PCB
• Cutting-Edge Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• Next Gen Connectivity: PCIe 5.0, PCIe 5.0 NVMe x4 M.2, Front & Rear USB 3.2 Gen 2 Type-C
• EZ-Latch: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design
• Fast Networking: 2.5GbE LAN, WiFi 6E, BT5.3
• Dynamic Audio: Hi-Fi Audio with High-End Audio Capacitors
• Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU
